Brand Name : LG
Model Number : LD840EQD-SEM4
Place of Origin : China
MOQ : 1 pcs
Price : Negotiable
Payment Terms : T/T, Western Union
Supply Ability : 100000 Unit/Units per Month
Delivery Time : 7 Days
Packaging Details : Original packaging/conventional packaging box
Model Name : LD840EQD-SEM4
Diagonal Size : 84.0"
Panel Type : a-Si TFT-LCD, LCM
Resolution : 3840(RGB)×2160, UHD 52PPI
Pixel Format : RGB Vertical Stripe
Active Area : 1860.48(W)×1046.52(H) mm
Display Mode : S-IPS, Normally Black, Transmissive
Lamp Type : WLED, 50K hours, With LED Driver
Best View on : Symmetry
Used for : Digital Signage
LD840EQD-SEM4 84.0 inch 16.7M LCD Panel Display
LD840EQD-SEM4 LCD Panel Product details :
Brand | LG Display |
Model P/N | LD840EQD-SEM4 |
Diagonal Size | 84" |
Panel Type | a-Si TFT-LCD, LCM |
Resolution | 3840(RGB)×2160, UHD 52PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 1860.48(W)×1046.52(H) mm |
Bezel Opening | 1871.0(W)×1057.0(H) mm |
Outline (mm) | 1904×1096×42.3 (H×V×D) |
Treatment | Antiglare (Haze 10%), Hard coating (3H) |
Luminance | 500 cd/m² (Typ.) |
Contrast Ratio | 1400 : 1 (Typ.) (TM) |
Viewing Angle | 89/89/89/89 (Min.)(CR≥10) |
Response | 12 (Typ.)(G to G), 8 (Typ.)(MPRT) ms |
Good View at | Symmetry |
Work Mode | S-IPS, Normally Black, Transmissive |
Color Depth | 16.7M/1.06B 100%sRGB |
Backlight | WLED, 50K hours, With LED Driver |
Mass | 42.9/44.4Kgs (Typ./Max.) |
Used for | Digital Signage |
Refresh Rate | 120Hz+120Hz |
Touchscreen | Without |
Signal Type | V-by-One 16 lane, Connector97 pins |
Voltage Supply | 12.0V (Typ.) |
Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
LD840EQD-SEM4 84.0 inch 16.7M LCD Panel Display |
LD840EQD-SEM4 LCD Panel Shipping and Package :
LD840EQD-SEM4 LCD Panel FAQ :
Q: How long is the warranty of LD840EQD-SEM4 ?
A: 90days warranty .
Q: Can you give me a discount if I need a large quantity of LD840EQD-SEM4 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How can I trace my order of LD840EQD-SEM4 ?
A: we will give you tracking number then you can trace your order from website.
Q: Can I pay my goods LD840EQD-SEM4 by credit card ?
A: Yes!you can use your credit card through your Paypal account.
![]() |

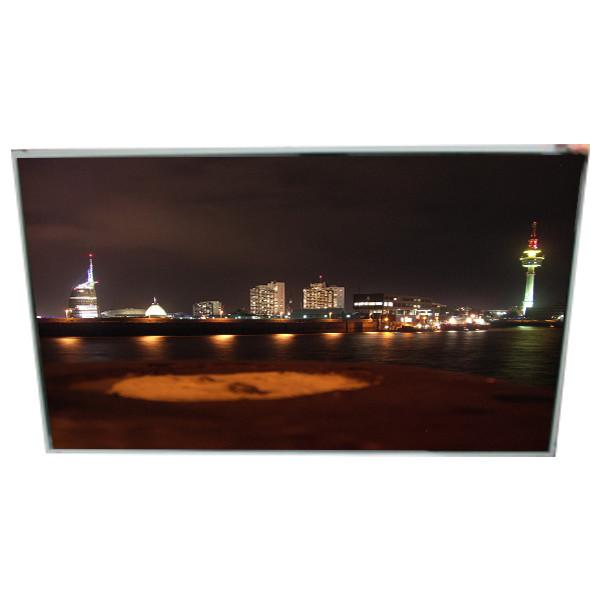

LD840EQD-SEM4 84.0 inch 16.7M LCD Panel Display Images |
